Understanding Line Width in 3D Printing: Optimizing Your Prints for Success
Welcome, fellow 3D printing and modeling enthusiasts! Today, we're diving into a fundamental aspect of 3D printing that often goes overlooked but plays a crucial role in the quality and accuracy of your prints: line width.
Line width refers to the width of the extruded filament as it's deposited layer by layer to create your 3D printed object. While it might seem like a minor detail, the line width can have a significant impact on the strength, surface finish, time, and overall quality of your prints. Let's explore why it matters and how you can optimize it for better results.
Why Line Width Matters:
Strength and Durability: The line width determines how well each layer bonds to the next. If the lines are too thin, the adhesion between layers might be weak, leading to a fragile final print. On the other hand, if the lines are too thick, you might lose fine details and end up with a bulky, less precise print.
Surface Finish: A carefully chosen line width can greatly improve the surface finish of your prints. Finer lines can print in tighter concaved areas. However, if the lines are too thick, you may notice some concave features become rounded to fit the wider lines.
Print Speed and Efficiency: Adjusting the line width can also impact the speed and efficiency of your prints. Thicker lines mean fewer passes are needed to fill in each layer, potentially speeding up the printing process. However, this comes with the trade-off of decreased resolution and detail.
How to Optimize Line Width for Your Prints:

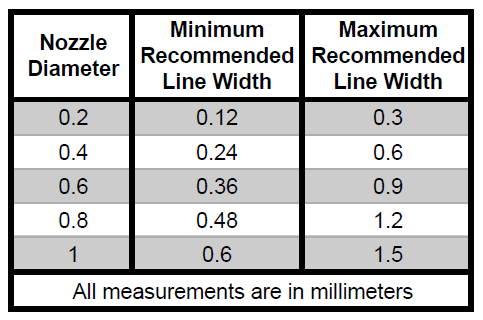

Consider Your Printer's Nozzle Size: The nozzle size of your 3D printer will largely dictate the range of line widths you can effectively use. As a general rule, the line width should be slightly wider than the nozzle diameter to ensure proper extrusion and adhesion. Check out this chart to see the minimum and maximum recommended line widths for some common nozzle diameters.
Experiment with Different Settings: Most slicing software allows you to adjust the line width parameter. Take advantage of this flexibility by experimenting with different settings to find the optimal balance between strength, surface finish, and print speed for your specific project.
Match Line Width with Layer Height: The line width should be proportional to the layer height to ensure proper adhesion and layer bonding. As a rule of thumb, the line width should be around:
1 to 2 times the layer height for low or light-duty parts, when printing time is more important than strength.
2 to 4 times the layer height for functional parts.
Above 4 times the layer height for crucial parts, when printing time becomes insignificant.
Read Me - How layer height effect your prints.
Consider the Material: Different materials behave differently during printing, so the ideal line width may vary depending on the filament you're using. Conduct test prints with various line widths to determine the optimal settings for each material.
Fine-tune for Specific Applications: Depending on the requirements of your project, you may need to adjust the line width accordingly. For intricate designs with fine details, a smaller line width may be necessary, while larger line widths might be suitable for structural parts that require added strength.
Line width can significantly impact the quality and performance of your prints. By understanding its importance and experimenting with different settings, you can optimize your prints for strength, surface finish, and efficiency. So, don't overlook this seemingly small detail—pay attention to line width and watch your prints reach new heights of precision and quality! Happy printing!
